Composite Cable Assemblies

Blackhawk Enterprises manufactures custom composite CCTV Cables for the ITS industry.  The composite cable consists of video, data, power and optional spare wiring.  Cable can be purchased in any length as raw cable, cable assembled with customer provided connector or cable assembled with Blackhawk provided connector.

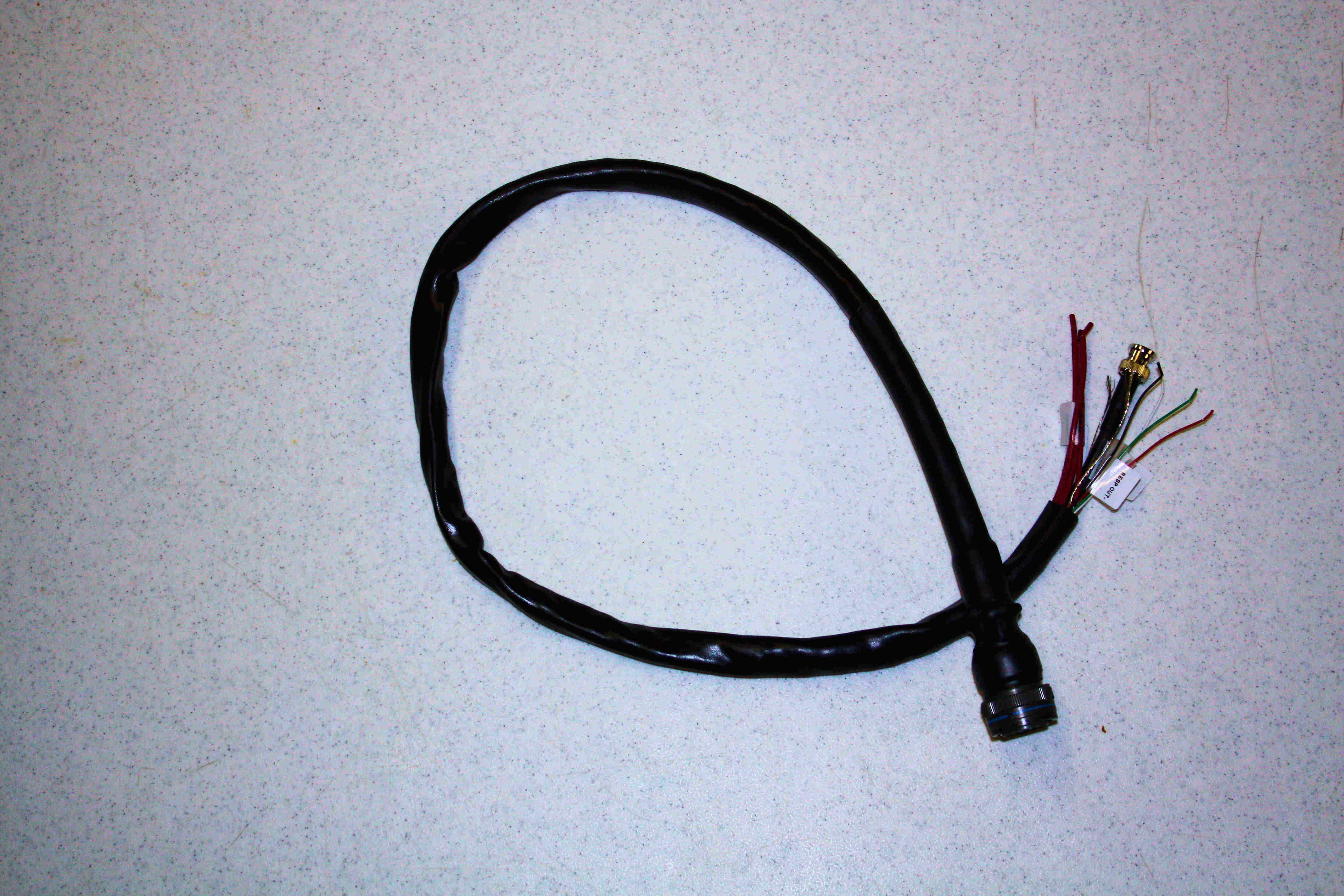

Completed cable assemblies in large lengths (>50ft) will come spooled, with the option for the connector spooled on the inside or outside to make running the cable easier during installation.

Blackhawk Enterprises can make any other custom cables that you may need for a variety of applications.  Call today to get a quote on the cable you need.

Composite Cable Assembly CutSheets

  BH-CCTV-xx-CONN   Blackhawk Standard Composite Cable Assembly.
    Also offered with RG6, Belden 8281, Power and IP only, etc.
  BH-RTMS-xx   Blackhawk RTMS Composite Cable Assembly

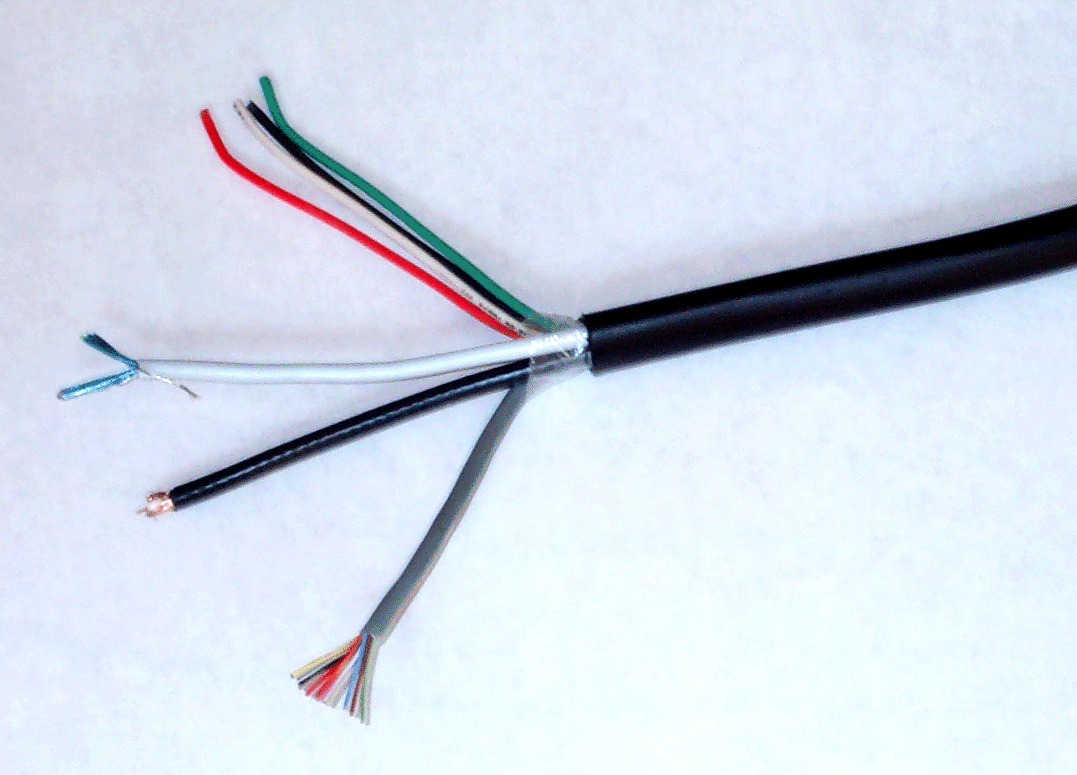

Composite Cable Types:

We can have any type of cable manufactured for your application.  Some of the more common cable types are:

  CCTV
  BH-020    Std. CCTV   RG59 for video, 2p22EPS for data, 2x14ga. THHN for power
  BH-022    CCTV with RG6   RG6   for video, 2p22EPS for data, 2x14ga. THHN for power (or 4x16ga. TFFN for power)
  BH-026   IP Domes   Cat6e for IP, 2 cond. 14ga.

  RTMS
  BH-030    RTMS w/232 and 485   2p22EPS for RS485, 2p22 OPS for RS232 and 2x18ga TFFN for power
  BH-031    RTMS w/232 or 485   2p22EPS for RS485 or RS-232, 2x18ga TFFN for power
  BH-032    RTMS w/232 and IP   2p22OPS for RS232, Cat5e for IP, 2x16ga. TFFN for power

Free shipping on 1000ft. spools





CCTV Wiring Information:

24VAC+ Power  14ga. Red #1 OR 16ga. Red #1 and #2

24VAC-  Power  14ga. Red #2 OR 16ga. Red #3 and #4

(the 16ga. wires can be doubled)



Simplex Operation

CMD IN+ (to camera)  Green

CMD IN - (to camera)  White



Duplex Operation

RESP OUT + (from camera) Red

RESP OUT -  (from camera) Black





RS232 to RS-422 Converters:

When using a PC to communicate directly to a camera, an RS-232 to RS-422 converter is required.  There are numerous brands and styles available, but only certain ones work.  The two units below have been proven to work with internal serial ports as well as with USB serial ports.



B&B Electronics:  422PP9TB

Black Box:  IC1473A-F

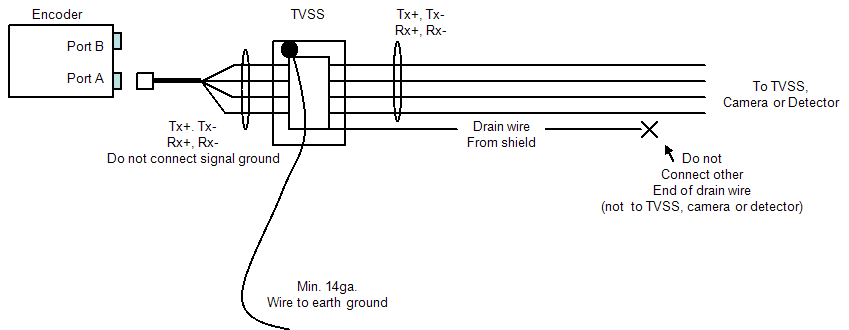

RS-422/RS-485 Wiring:

Composite cables manufactured by Blackhawk Enterprises that have RS-422 or RS-485 do NOT have the data drain wired in the MS-Connector.  The drain wire should be terminated to the cabinet ground on the tag end of the composite cable assembly, typically on the surge protection device.

-------------------------------------------------------------------------------------------------------------------
